Draka S670T-06-62X µå¶óÄ«
¡¡ »óÇ° »ó¼¼ ¼³¸í



Draka S670T-06-62X

S670T ARMORED AND SHEATHED MARINE FIBER OPTIC CABLES

Tight buffer construction

2 to 48 fibers / singlemode or multimode / LSZH / Armored & Sheathed


¡Ü»ç¾ç¼³¸í¡Ü

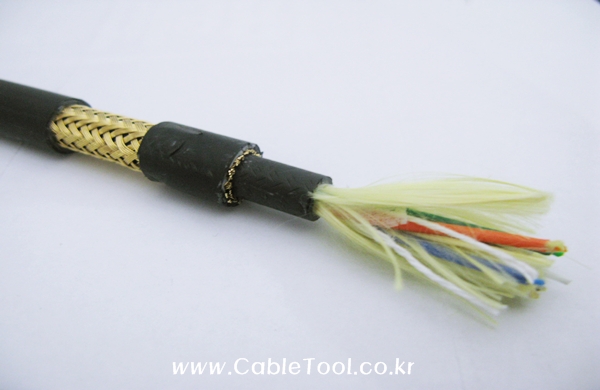

Construction

1. Central Strength Member: Dielectric material (epoxy fiberglass rod).

2. Fiber: Multimode or singlemode fibers with an easily-strippable 900¥ìm tight buffering  olored per TIA/EIA 598.

3. Subunit Strength Member: Aramid yarn

4. Subunit Jacket: ChromaTek-L¢â Halex low smoke zero halogen polyolefin.

5. Jacket: ChromaTek-L¢â Halex low smoke zero halogen polyolefin.

6. Armor: Braided bronze in accordance with IEEE 1580 (2001).

7. Sheath: ChromaTek-L¢â Halex low smoke zero halogen polyolefin.

Features

• Low smoke/zero halogen construction meets appropriate IEEE and IEC standards

fire, smoke, and toxicity

• Superior resistance to oil, abrasion, moisture, sunlight, mud, crush and impact

• Gigabit Ethernet 802.3Z compliant

Ratings

Meets IEC 60794-1-1, 60794-1-2 and 60794-2.

Det Norske Veritas Type Approval Certificate E-7155

American Bureau of Shipping Approval Certificate 04-HS440499B/2-PDA.

Lloyds Registry of Shipping Approval Certificate 00/00157E2.

Flame retardant per IEC 60332-3, CAT. A CAT A/F and IEEE 1202

Smoke density requirements of IEC 61034-1 and IEC 61034-2

Acid gas generation requirements of IEC 60754-1 and IEC 60754-2

Toxicity requirements of NES 713

Meets the permance requirements of IEEE 802.3z (Gigabit Ethernet)

----------------------------------------------------------------------------------------------------------------------------------------------
