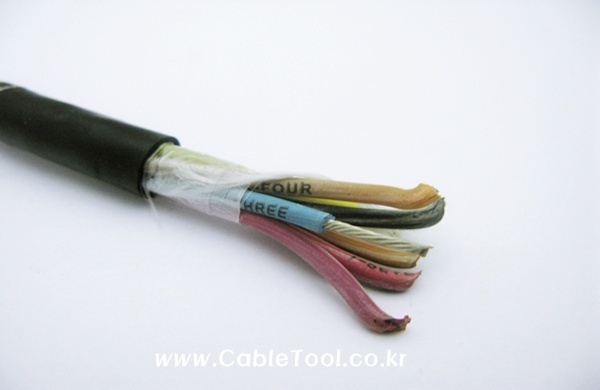

Anixter 2RH-1607
Industrial
Tray Cable, Class B stranded tinned copper conductors, Cross-linked
polyethylene (XLP) insulation, Sunlight resistant Hypalon (CSPE) jacket
overall, Cables are listed fro Direct Burial, 90C, 600 Volts
Product
Description
XLP insulation / TS-CPE jacket / 90°C, 600 V
Applications
Designed
power and control, telemetering, relay control, traffic control, switching,
lighting and signal transmission. May be used in Class I, Div. 2 and Class II
Div 2 Hazardous
Locations per NEC Art. 501 and 502. These cables also conm to Art. 392
"Cable Trays" and Art. 336 "Power and Control Tray Cable: Type
TC."
Specifications
| Armor:
|
NO
|
Composite:
|
NO
|
|
Conductor
Count:
|
7 CONDUCTOR
|
|
Conductor
Material:
|
TINNED OR COATED COPPER
|
|
Conductor
Size:
|
16 AWG
|
|
Conductor
Type:
|
STRANDED
|
|
Earth/Ground
Wires:
|
NO
|
|
Insulation
Color Code:
|
BLACK AND RED WITH NUMBERS
|
|
Insulation
Material:
|
XLP-CROSS LINKED POLYETHYLENE
|
|
Jacket Color:
|
BLACK
|
|
Jacket
Material:
|
TS CPE-THERMOSET CHLORINATED POLYETHYLENE
|
|
Product Type:
|
XLP CONTROL
|
|
Screen/Shield:
|
UNSHIELDED
|
|
Temperature
Rating:
|
90 DEGREES CENTIGRADE
|
|
Voltage
Range:
|
600V
|
==========================================================================================
