Anixter 2RH-1601 ¾Ö´Ï½ºÅÍ
¡¡ »óÇ° »ó¼¼ ¼³¸í

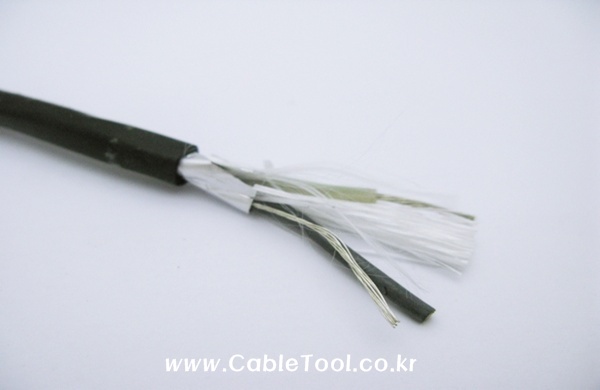

 Anixter 2RH-1607
Industrial Tray Cable, Class B stranded tinned copper conductors, Cross-linked polyethylene (XLP) insulation, Sunlight resistant Hypalon (CSPE) jacket overall, Cables are listed fro Direct Burial, 90C, 600 Volts

Product Description
XLP insulation / TS-CPE jacket / 90¡ÆC, 600 V

Applications

Designed power and control, telemetering, relay control, traffic control, switching, lighting and signal transmission. May be used in Class I, Div. 2 and Class II Div 2

Hazardous Locations per NEC Art. 501 and 502. These cables also conm to Art. 392 "Cable Trays" and Art. 336 "Power and Control Tray Cable: Type TC."

Specifications
Armor:

NO

Composite:

NO
Conductor Count:


7 CONDUCTOR

Conductor Material:

TINNED OR COATED COPPER

Conductor Size:

16 AWG

Conductor Type:

STRANDED

Earth/Ground Wires:

NO

Insulation Color Code:

BLACK AND RED WITH NUMBERS

Insulation Material:

XLP-CROSS LINKED POLYETHYLENE

Jacket Color:

BLACK

Jacket Material:

TS CPE-THERMOSET CHLORINATED POLYETHYLENE

Product Type:

XLP CONTROL

Screen/Shield:

UNSHIELDED

Temperature Rating:

90 DEGREES CENTIGRADE

Voltage Range:

600V


==========================================================================================
