Draka 1002714

RG-6 Cables acc. to MIL-C-17F and MIL-C-17G

●사양설명●

Standards
acc. to MIL-C-17F and MIL-C-17G

Flame resistance
acc. to IEC 60332-1

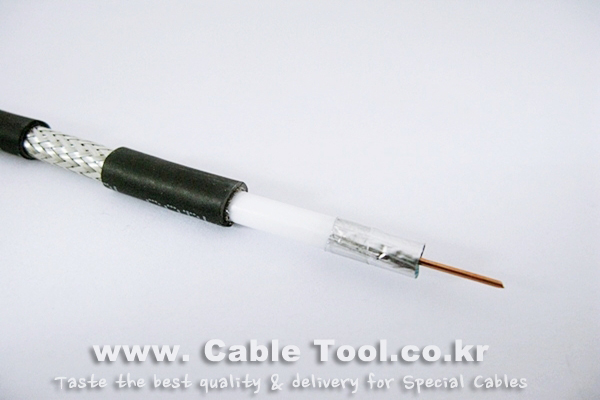

Construction
Inner conductor copperclad steel wire, diameter 0.73 ± 0.01 mm
Insulation PE, diameter 4.7 ± 0.05 mm
1. braid silver plated , 96% optical coverage
2. braid bare, 96% optical coverage, diameter 6.2 mm
Sheath PVC, diameter 8.40 ± 0.15 mm

Mechanical properties
Minimum bending radius: without load 5 x outer diameter / with load 10 x outer diameter
Temperature: during operation -40° C to + 85° C / during installation -15° C to + 55° C

Electrical properties at 20°C
DC resistance Inner conductor 105 Ω/km
1st braid 6.5 Ω/km
2nd braid 7.5 Ω/km
Mutual capacitance 67 nF/m
Characteristic impedance 75 Ω ± 3 Ω
Velocity ratio 66 %
Operating voltage ≤ 2.4 kVrms
Test voltage Inner-/outer conductor 7.0 kVrms

----------------------------------------------------------------------------------------------------------------------------------------------
