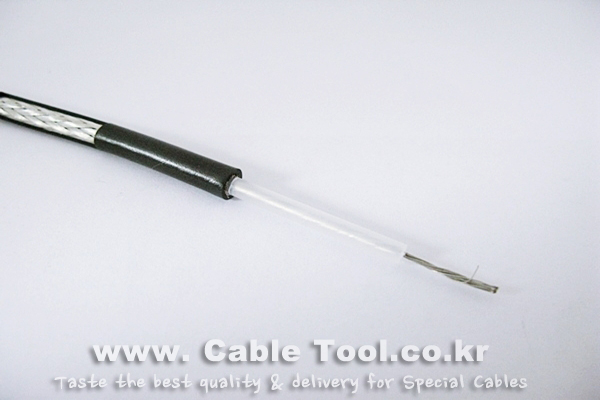

RG-58 Cables acc. to MIL-C-17F and MIL-C-17G

●사양설명●

Standards
acc. to MIL-C-17F and MIL-C-17G

Flame resistance
acc. to IEC 60332-1

Construction
Inner conductor:  stranded copper wires, tinned, diameter 0.90 ± 0.01 mm

Insulation: PE, diameter 2.95±0.05mm
Braid: tinned, 96% optical coverage
Sheath: PVC, altern. FRNC, diameter 4.95 ± 0.10 mm black

Mechanical properties
Minimum bending radius: without load 5 x outer diameter / with load 10 x outer diameter
Temperature: during operation -40° C to + 85° C / during installation -15° C to + 55° C

Corrosivity: only FRNC type IEC 60754-2

Electrical properties at 20°C
Loop resistance: ≤ 50 Ω
Characteristic impedance: 50 Ω ± 2 Ω
Velocity ratio: 66 %
Mutual capacitance: 100 nF/km
Transfer impedance: 36 mΩ/m
Operating voltage: 1.8 kVrms
Test voltage: Inner/Outer conductor 5.4 kVrms

----------------------------------------------------------------------------------------------------------------------------------------------
