RG-59 Cables acc. to MIL-C-17F and MIL-C-17G

●사양설명●

Standards
acc. to MIL-C-17F and MIL-C-17G

Flame resistance
acc. to IEC 60332-1

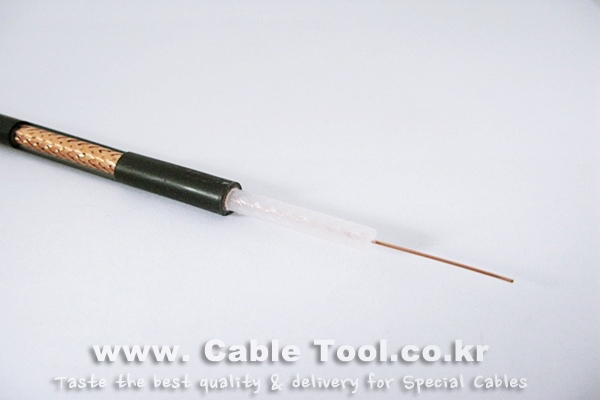

Construction
Inner conductor:  copperclad steel wire, diameter 0.590 ± 0.01 mm

Insulation: PE, diameter 3.70±0.05mm
Copper braid: bare, 95% optical coverage
Sheath: PVC, diameter 6015 ± 0.10 mm black

Mechanical properties
Minimum bending radius: without load 5 x outer diameter / with load 10 x outer diameter
Temperature: during operation -40° C to + 85° C / during installation -15° C to + 55° C

Corrosivity: only FRNC type IEC 60754-2

Electrical properties at 20°C
Loop resistance: ≤  165 Ω/km
Characteristic impedance: 75 Ω ± 3 Ω
Mutual capacitance: 67 pF/m
Velocity ratio: 66 %
Transfer impedance: 3 MHz 36 mΩ/m
Operating voltage: 1.7 kVrms
Test voltage: Inner/Outer conductor 7 kVrms

----------------------------------------------------------------------------------------------------------------------------------------------
