RG-213 Cables acc. to MIL-C-17F and MIL-C-17G

●사양설명●

Standards
acc. to MIL-C-17F and MIL-C-17G

Flame resistance
acc. to IEC 60332-1

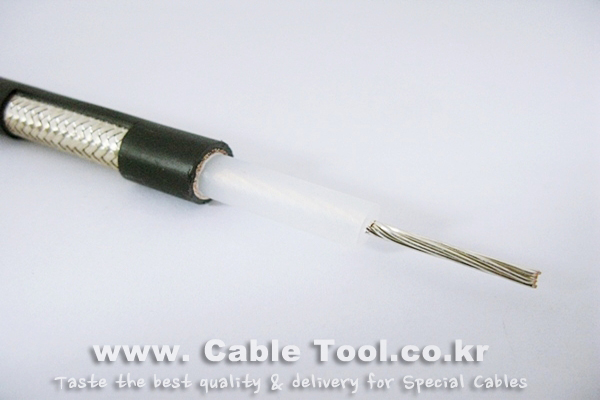

Construction
Inner conductor:  stranded copper wires, bare 7x0.75,, diameter 2.25 ± 0.01 mm

Insulation: PE, diameter 7.25 ± 0.05 mm
Braid: bare copper 96% optical coverage
Sheath: PVC, diameter 10.30 ± 0.15 mm

Mechanical properties
Minimum bending radius: without load 5 x outer diameter / with load 10 x outer diameter
Temperature: during operation -40° C to + 85° C / during installation -15° C to + 55° C

Electrical properties at 20°C
DC resistance Inner conductor 5.7 Ω/km
Outer conductor 3.9 Ω/km
Mutual capacitance 100 pF/m
Characteristic impedance 50 Ω ± 2 Ω
Velocity ratio 66 %
Operating voltage 3.7 kVrms
Test voltage Inner/Outer conductor 10.0 kVrms

----------------------------------------------------------------------------------------------------------------------------------------------
