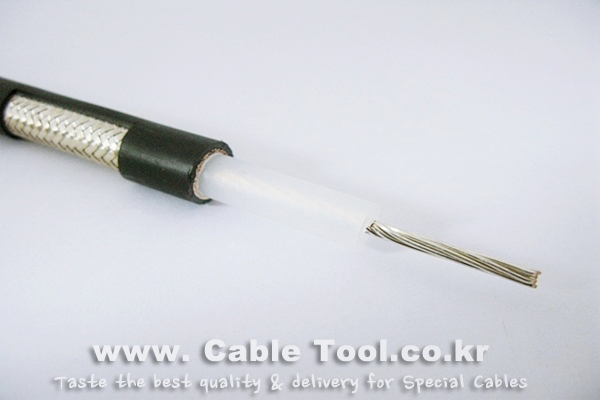

RG-214 Cables acc. to MIL-C-17F and MIL-C-17G

●사양설명●

Standards
acc. to MIL-C-17F and MIL-C-17G

Flame resistance
acc. to IEC 60332-1

Construction
Inner conductor:  stranded copper wires, silver plated 7x0.75, diameter 2.25 ± 0.1 mm
Insulation: PE, diameter 7.25 ± 0.15 mm
1st braid: silver plated, 94% optical coverage

2nd braid: silver plated, 97% optical coverage
Sheath: PVC, diameter 10.80 ± 0.18 mm

Mechanical properties
Minimum bending radius: without load 5 x outer diameter / with load 10 x outer diameter
Temperature: during operation -40° C to + 85° C / during installation -15° C to + 55° C

Electrical properties at 20°C
DC resistance Inner conductor 5.7 Ω/km
1st braid 9.6 Ω/km
2nd braid 8.2 Ω/km
Mutual capacitance 100 pF/m
Characteristic impedance 50 Ω ± 2 Ω
Velocity ratio 66 %
Maximum operating frequency 11 GHz
Operating voltage 3.7 kVrms
Test voltage Inner/Outer conductor 10.0 kVrms
----------------------------------------------------------------------------------------------------------------------------------------------
