●사양설명●

Cable Construction
Number of pairs: 4

Sheath Material: PVC
Conductor dimension (mm): 0.5

Insulation diameter (mm): 1.04+/-0.02 PE
Insulation Color:BLUE / Whte-Blue, ORANGE / White-Orange, GREEN / White-Green, BROWN / White-Brown,
Cable diameter (mm): 6.0 +/- 0.20
Weight (kg/km): 38.66

Cable Properties
Bending: Minimum bending radius installed 4 x D
Tensile strength: Maximum tensile load, installation 100 N, Maximum tensile load, installed No stretch
Temperature window: Operation -20ºC to +60ºC, Installation 0ºC to +50ºC

Fire classification
PVC_ IEC 60332-1
LSOH_IEC61034, IEC60754, IEC 60332-1
LSFROH_IEC61034, IEC60754, IEC 60332-3C

Operating Voltage

Nominal: 30V DC, Maximum: 72V DC

Ordering Inmation

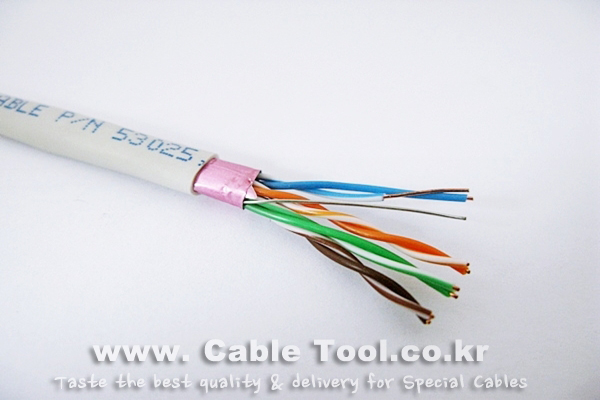

UTP Flame ret_4x2/0.51 Category 5E_ PVC_53025_IEC 332-1
UTP Flame ret_4x2/0.51 Category 5E_PE_53035_CM (UL 1666)
UTP LSOH_4x2/0.51 Category 5E_LSOH_553041_IEC 332-1
UTP LSFROH_ 4x2/0.51 Category 5E_LSFROH_53048_IEC 332-3C

----------------------------------------------------------------------------------------------------------------------------------------------
