Draka 694144 µå¶óÄ«
±Ô°Ý : QFCI-I/O/RM-JM/- G8-62.5/125
¡¡ »óÇ° »ó¼¼ ¼³¸í

QFCI-I/O/RM-JM/-

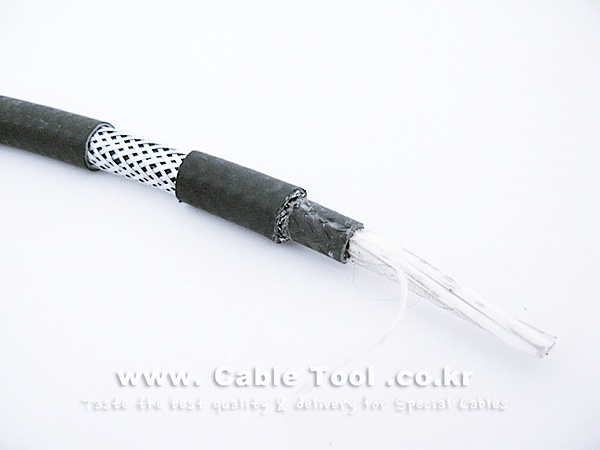

Indoor and outdoor. Fire resistant Flame retardant halogen-free Loose tube

Optical cable indoor and outdoor use in vital communication and emergency systems
that need to be operational during fire. The cable has a patented design that ensures operation
more than 3 hours in fires up to 1000¨¬C. The cable is halogen free and flame retardant to
protect against secondary damage to electronic equipment during and after fire.
Outer sheath is made from black UV-stabilized and weather resistant material and may be exposed
shorter periods to fluids such as diesel and mineral oils.
The resistance to these fluids is according to IEC60811-2-1. The cable is reinced with a steel wire braiding.
The fibres are protected in jelly filled loose tubes stranded around a central strength member to
ensure optimum permance and long life.
Each fibre and loose tube is colour coded easy identification during splicing and termination.
The outer sheath is marked to show fibre type and cable type.

Weight and dimensions

Number of fibres

Number of fibres in each tube

Number of tubes + fillers

Loose tube diameter (mm)

Outer diameter (mm)

Weight (kg/km)

Heat release (MJ/km)

4

2

2+4

2.2

13.5

260

1390

8

4

2+4

2.2

13.5

260

1381

12

4

3+3

2.2

13.5

260

1324

24

4

6+0

2.2

13.5

260

1138

48

8

6+0

2.2

13.5

260

1138


Cable properties

Tensile strength (IEC 60794-1-2E1) ¡¡ Chemical reistance ¡¡
Max tensile load during installation

1500 N

  Mineral oils IRM 902 (IEC60811-2-1) - 7 days/23¡ÆC
Max tensile load during operation

500 N

¡¡ - 4 hours/70¡ÆC
¡¡ ¡¡   Diesel - IRM 903 (IEC60811-2-1) - 7 days/23¡ÆC
¡¡ ¡¡ ¡¡ - 4 hours/70¡ÆC
¡¡ ¡¡ ¡¡ ¡¡
Crush (IEC 60794-1-2E3)

3000 N/10cm

Fire and smoke classifications ¡¡
Impact (IEC 60794-1-2E4)

30J

  IEC 60331-25 (750¡ÆC, 90 minutes) <1.0 dB excess loss
Torsion (IEC 60794-1-2E7)

¡¾1 turn/1m

  Upgraded IEC 60331-25 (1000¡ÆC, 3 hours) <1.5 dB excess loss
Cable bending   BP GS 112-2 Clause7.1 ¡¡
Minimum bending diameter

250 mm

  IEC 61034 ¡¡
Cable bend (IEC 60794-1-2E11)

<0.1dB/ ¡¾5 turn

  IEC 60332-3-22 (Cat. A) ¡¡
¡¡ ¡¡   IEC 60332-3-24 (Cat. C) ¡¡
Temperature window ¡¡   IEC 60754-1 ¡¡
Operation

-40¡ÆC to +70¡ÆC

  IEC 60754-2 ¡¡
Installation

-10¡ÆC to +70¡ÆC

¡¡ ¡¡
Storage

-40¡ÆC to +70¡ÆC

¡¡ ¡¡

Ordering inmation

Part no Number of fibres Cabe Type Fiber type Fiber data sheet
694150 12 G12-9/125 QFCI-I/O/RM-JM/- OS2 Single mode C03e
694180 24 G24-9/125 QFCI-I/O/RM-JM/- OS2 Single mode C03e
694139 48 G48-9/125 QFCI-I/O/RM-JM/- OS2 Single mode C03e
694152 12 G12-50/125 QFCI-I/O/RM-JM/- OM2 50/125 multi mode C23
694182 24 G24-50/125 QFCI-I/O/RM-JM/- OM2 50/125 multi mode C23
694169 48 G48-50/125 QFCI-I/O/RM-JM/- OM2 50/125 multi mode C23
699880 4 G4-50/125 OM3 QFCI-I/O/RM-JM/- OM3 MaxCap-OM3 C31
¡¡ 12 G12-50/125 OM3 QFCI-I/O/RM-JM/- OM3 MaxCap-OM3 C31
¡¡ 24 G24-50/125 OM3 QFCI-I/O/RM-JM/- OM3 MaxCap-OM3 C31
¡¡ 48 G48-50/125 OM3 QFCI-I/O/RM-JM/- OM3 MaxCap-OM3 C31
694124 4 G4-62.5/125 QFCI-I/O/RM-JM/- OM1 62.5/125 multi mode C02
694144 8 G8-62.5/125 QFCI-I/O/RM-JM/- OM1 62.5/125 multi mode C02
694154 12 G12-62.5/125 QFCI-I/O/RM-JM/- OM1 62.5/125 multi mode C02
694184 24 G24-62.5/125 QFCI-I/O/RM-JM/- OM1 62.5/125 multi mode C02
694189 48 G48-62.5/125 QFCI-I/O/RM-JM/- OM1 62.5/125 multi mode C02
