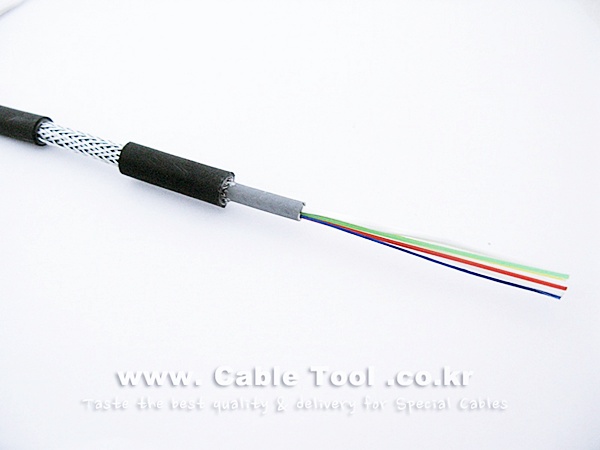

AICI-I/O/RM-W
Indoor and outdoor Flame retardant and halogen free Steel wire braiding Tight buffer

Optical cable industrial environments.
The cable is suitable both indoor and outdoor installation.
Continiuous submergence in water is not recommended.
The outer sheath is made from black UV-stabilized and weather resistant material which is SHF1 classified,
and may be exposed shorter periods to fluids such as diesel and mineral oils.
The resistance to these fluids is according to IEC60811-2-1.
The cable is reinced with a steel wire braiding between the two sheaths.
Strength elements of glass yarn around the cable core allow easy installation of long lengths.
The 0.9 mm tight buffer is easy to strip allowing fast and reliable splicing and connector mounting.
Each fibre is colour coded easy identification.
The outer sheath is marked to show fibre type and cable type.

Weight and dimensions

Number of fibres

Secondary coating [mm]

Outer diameter [mm]

Weight [kg/km]

Tensile strength* [Inst./oper.] [N]

4

0.9

8.2

90

700/250

8

0.9

9.4

125

800/350

12

0.9

10.3

145

1200/500

24

0.9

12

185

1700/750



Cable properties
*Tensile strength (IEC 60794-1-2E1) ¡¡ Temperature window ¡¡
Max tensile load during installation

See above

Operation -40¡ÆC to +70¡ÆC
Max tensile load during operation

See above

Installation -10¡ÆC to +70¡ÆC
Crush (IEC 60794-1-2E3)

2000 N/10cm

Storage -40¡ÆC to +70¡ÆC
Impact (IEC 60794-1-2E4)

 1 impacts, 25J

Water tightness* (IEC 60794-1-2F5B)  < 3 m/24 hours
Torsion (IEC 60794-1-2E7)

¡¾ 1 turn/1m

Fire and smoke classifications ¡¡
Cable bending ¡¡  IEC 60332-1 ¡¡
Minimum bending diameter

15x outer diameter

IEC 60332-3-22 (Cat. A) ¡¡
Cable bend (IEC 60794-1-2E11)

<0.5 dB/ ¡¾ 5 turn

IEC 60332-3-24 (Cat. C) ¡¡
Flexibility (IEC 60794-1-2E8)

1000 cycles

IEC 61034 ¡¡
¡¡ ¡¡ IEC 60754-1 ¡¡
¡¡ ¡¡ IEC 60754-2 ¡¡
¡¡ ¡¡ Chemical reistance ¡¡
¡¡ ¡¡ Mineral oils IRM 902 (IEC60811-2-1) - 7 days/23¡ÆC
¡¡ ¡¡ ¡¡ - 4 hours/70¡ÆC
¡¡ ¡¡ Diesel - IRM 903 (IEC60811-2-1) - 7 days/23¡ÆC
¡¡ ¡¡ ¡¡ - 4 hours/70¡ÆC


Ordering inmation
Part no Number of Fibres Cable Type Fiber Type Fiber Data Sheet
695420 4 G4-9/125 AICI-I/O RM-W OS2 Single mode  C03e
695440 8 G8-9/125 AICI-I/O RM-W OS2 Single mode  C03e
695450 12 G12-9/125 AICI-I/O RM-W OS2 Single mode  C03e
695480 24 G24-9/125 AICI-I/O RM-W OS2 Single mode  C03e
695422 4 G4-50/125 AICI-I/O RM-W OM2 50/125 multi mode C23
695442 8 G8-50/125 AICI-I/O RM-W OM2 50/125 multi mode C23
695452 12 G12-50/125 AICI-I/O RM-W OM2 50/125 multi mode C23
695482 24 G24-50/125 AICI-I/O RM-W OM2 50/125 multi mode C23
¡¡ 4 G4-50/125OM3BB AICI-I/O RM-W  OM3 MaxCap-OM3   C31
¡¡ 8 G8-50/125OM3BB AICI-I/O RM-W  OM3 MaxCap-OM3   C31
¡¡ 12 G12-50/125OM3BB AICI-I/O RM-W  OM3 MaxCap-OM3   C31
¡¡ 24 G24-50/125OM3BB AICI-I/O RM-W  OM3 MaxCap-OM3   C31
695424 4 G4-62.5/125 AICI-I/O RM-W OM1 62.5/125 multi mode C02
695444 8 G8-62.5/125 AICI-I/O RM-W OM1 62.5/125 multi mode C02
695454 12 G12-62.5/125 AICI-I/O RM-W OM1 62.5/125 multi mode C02
695484 24 G24-62.5/125 AICI-I/O RM-W OM1 62.5/125 multi mode C02
