Draka 26285 µå¶óÄ«
¿ø»êÁö : Draka
±Ô°Ý : TYPE P 600V 4C14 Control
¡¡ »óÇ° »ó¼¼ ¼³¸í

Applications
BostrigTM Type P Marine and Offshore Cable is primarily designed power, control, signal and
instrumentation applications offshore, land rigs, marine vessels and oil and gas drilling rigs.

Bostrig cables have excellent resistance to oil, abrasion, moisture, sunlight and ester-based mud (Type P-MR).
They are suitable use in Class I, Division I and Zone I applications (armored & sheathed) and meet the crush
and impact resistance requirements (C&IR) of UL 2225.

The standard insulation has a continuous operating temperature of 125¨¬C allowing higher ampacity
levels. Larger diameter cables carry a new flexible design. They satisfy Transport Canada¡¯s cold bend at
-40¨¬C and cold impact at -35¨¬C (CSA C 22.2 No. 0.3).

Approvals
ETL/Intertek Testing Services Listed as Marine Shipboard Cable in accordance with IEEE 45 (1998), IEEE 1580
(2001), UL 1309/CSA245 and the permance requirements of IEC 60092-3.

Det Norske Veritas Type Approval Certificates E8792, E8793, E8794, E8795 and E8796.

American Bureau of Shipping Approval Certificate 03-HS347018C/3-PDA.

Lloyds Registry of Shipping Approval Certificates No. 95/00161(E3) and 95-00162(E3)

Transport Canada Approved AMS400-20-2

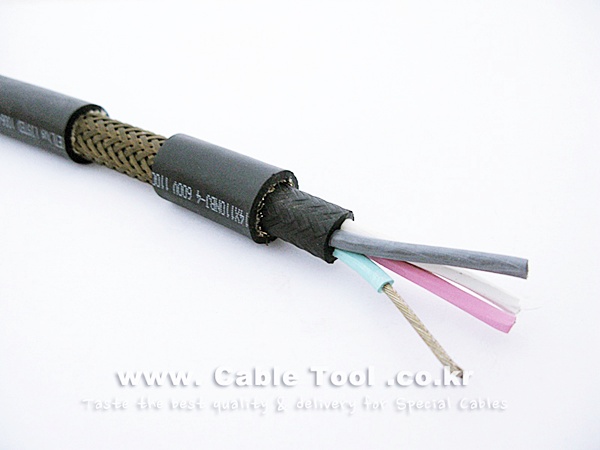

Construction
1. Conductors Soft annealed stranded tinned copper per ASTM B 33. A polyester tape separator is used over the conductor.

2. Insulation Bostrig Type P chemically cross-inked polyolefin (XLPO), meeting IEEE 1580 (2001)

3. Jacket Bostrig Type P chemically cross-inked polyolefin (XLPO), meeting IEEE 1580 (2001).

4. Armor Braided bronze in accordance with IEEE 1580 (2001).

5. Sheath Flame-retardant Arctic Neoprene applied over the armor, complying with Type N Neoprene
as required in IEEE 1580 (2001). Thickness as shown in tables on opposite page.

Features
• Superior resistance to oil, abrasion, moisture, sunlight, mud, crush and impact
• Super-flexible at 4/0 AWG and larger
• Meets IEEE standards 600V / IEC standards 0.6/1kV

Ratings
Meets all test requirements of IEEE 1580 (2001) and the flame test in IEC 60332-3, Category A.
Listed by ETL per IEEE 1580 (2001), UL 1309/CSA 245 and IEEE 45 (1998) 600V.
Bostrig Type P cables comply with the Crush and Impact requirements of UL 2225.

Type Designation Draka Number Conductor Insulation
Thickness
in • mm		 Sheath Thickness (in•mm) Nom.OD
(in•mm)		 Weight (Lbs/mft•Kg/km)
C14PNBS-2 026283 2 .030•0.76 .060•1.5 .560•14.2 205•305
C14PNBS-3 026284 3 .030•0.76 .060•1.5 .575•14.6 240•357
C14PNBS-4 026285 4 .030•0.76 .060•1.5 .620•15.8 275•409
C14PNBS-5 026286 5 .030•0.76 .060•1.5 .660•16.8 305•454
C14PNBS-6 026287 6 .030•0.76 .060•1.5 .700•17.8 340•506
C14PNBS-7 026288 7 .030•0.76 .060•1.5 .700•17.8 355•528
C14PNBS-8 026289 8 .030•0.76 .060•1.5 .740•18.8 395•588
C14PNBS-10 026290 10 .030•0.76 .060•1.5 .860•21.8 500•744
C14PNBS-12 026291 12 .030•0.76 .060•1.5 .890•22.6 550•818
C14PNBS-16 026292 16 .030•0.76 .060•1.5 .960•24.4 655•975
C14PNBS-20 026293 20 .030•0.76 .060•1.5 1.040•26.4 770•1146
C14PNBS-24 026294 24 .030•0.76 .080•2.0 1.170•29.7 930•1384
C14PNBS-30 026295 30 .030•0.76 .080•2.0 1.225•31.1 1060•1577
C14PNBS-37 026296 37 .030•0.76 .080•2.0 1.305•33.2 1240•1845
C14PNBS-44 026297 44 .030•0.76 .110•2.8 1.495•38.0 1510•2247
C14PNBS-60 026298 60 .030•0.76 .110•2.8 1.625•41.3 1880•2298
C14PNBS-91 026299 91 .030•0.76 .115•2.9 1.950•49.5 2750•4093
