H05Z-K / H07Z-K / Rubber insulated single core, halogen-free
Helukabel 51786
Technical data
¡ÜRubber-insulated single core cables low emission of smoke and corrosive gases in case of fire to VDE 0282 part 9 and HD 22.9 S2
¡ÜConductor resistance: according to DIN VDE 0295 cl. 5
¡ÜTemperature range: -40 ¡ÆC to +90 ¡ÆC
¡ÜPermissible working temperature: at the conductor +90 ¡ÆC
¡ÜNominal voltage : H05Z-K U0/U 300/500 V / H07Z-K U0/U 450/750 V
¡ÜTest voltage 2500 V
¡ÜMinimum bending radius: approx. 8x core ©ª
¡ÜRadiation resistance: up to 20x106 cJ/kg (up to 20 Mrad)
Cable structure
¡ÜBare copper conductor, finewire stranded according to DIN VDE 0295 cl. 5, BS 6360 cl. 5,
IEC 60228, HD 383
¡ÜCore identification according to DIN VDE 0293
¡ÜSeparator over conductor permitted
¡ÜCore insulation of cross-linked polyolefin, compound type EI5 to DIN VDE 0282 part 1
¡ÜCore colors see table below, dark blue and orange on request
¡ÜLS0H = Low Smoke Zero Halogen-free.
Properties
¡ÜThe materials used in manufacture are admium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
¡Üself-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
¡ÜOzone resistant according to EN 60811-2-1 / HD 505.2.1
¡ÜSmoke density according to VDE 0482 part 1034-1+2, DIN EN 61034-1+2/ IEC 61034-1+2,
BS 7622 part 1+2 (equivalent DIN VDE 0472 part 816)
Note
¡ÜAWG sizes are approximate equivalent values. The actual cross-section is in mm©÷.
Application
Halogen-free single-core wires are used installation in dry environments wiring up lighting fixtures and units where valuable assets are to protected from further damage resulting from fire. These cables may be installed on, in and beneath plaster, as well as in closed installation ducts. The direct operating voltage is permitted up to 900 V against ground when they are used in rail-coaches. the inner wiring of switch boards and distributors are to be used with an alternating nominal voltage up to 1000 V or a direct voltage up to 750 V against ground.
CE= The product is conmed with the EC Low-Voltage Directive 2006/95/EG
Description

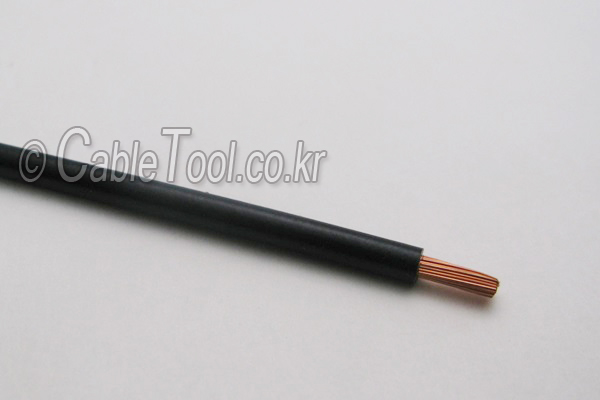

¡ÜCable Type: H07Z-K
¡ÜCrosssection mm©÷: 4
¡ÜCore ¨ªmin. - max. mm: 3.9 – 4.9
¡ÜCop. Weight kg / km: 38.0
¡ÜWeight approx. kg / km: 51.0
¡ÜColor: Black
===================================================================================================
