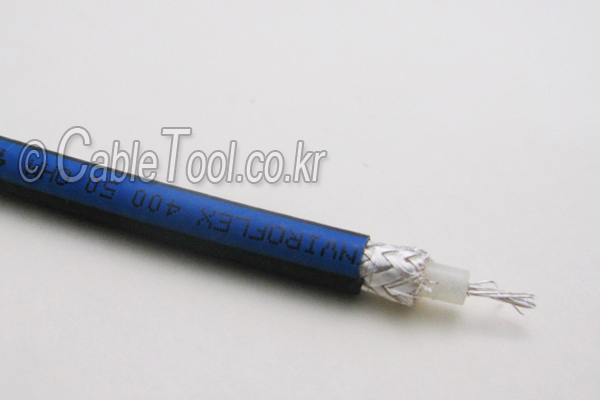

HUBER+SUHNER 22512280 / Çã¹ö½´³Ê ENVIROFLEX_400
¡¡ »óÇ° »ó¼¼ ¼³¸í

ENVIROFLEX? coax cables
Halogen free alternative to conventional PTFE coax cables



Electrical cable data
Impedance (¥Ø): 50 ¥Ø
Screening: single
Capacitance: 94 pF/m
Screening effectiveness: ¡Ã 40 dB up to 1 GHz
Velocity of signal propagation: 69 % of the speed of light
Epsilon r: 2.1
Signal delay: 4.8 ns/m
Insulation resistance:



General cable data
Dielectric material: foamed polyethylene cross-linked
Min. bending radius static: 5 x ¨ª jacket
Min. bending radius dynamic: 15 x ¨ª jacket
Temperature range: jacket mat. RADOX?: –40 ¡ÆC to +105 ¡ÆC
UL recognized: All ENVIROFLEX cable types are UL recognized

Description
HUBER+SUHNER type: ENVIROFLEX_400
Item no: 22512280
Center conductor ( Design: stranded-19  /  Material: CuAg  /  Dim mm: 1.00 )
Dielectric ( Mat: SPEX / Dim mm: 3.03 )


Screen 1 ( Material: CuAg / Dim mm: 3.72 / Cover %: 96 )
Screen 2 (Material: CuAg / Dim mm: 4.24 / Cover %: 91)
Jacket ( Mat:
RADOX?
/ Dim mm: 5.00/ Colour: black )
Weight (kg/100 m): 6.00
Operating(kv): 2.5
Max. operation frequency (GHZ): 6

===================================================================================================
