G – Standard PE coax cables

Electrical cable data
Impedance (Ω): 50
Capacitance: 101 pF/m
Velocity of signal propagation: 66 % of the speed of light
Epsilon r: 2.3
Signal delay: 5.0 ns/m
Insulation resistance: > 108 MΩm
Screening effectiveness: ≥ 80 dB up to 6 GHz

General cable data
Dielectric material: solid polyethylene
Min. bending radius static: 5 x Ø jacket
Min. bending radius dynamic: 15 x Ø jacket
Temperature range: jacket mat. PVC, PVC (UL), PVC2 (LM): –25 °C to +85 °C
Temperature range: jacket mat. PE, LSFH™, PUR, RADOX?: –40 °C to +85 °C

Description

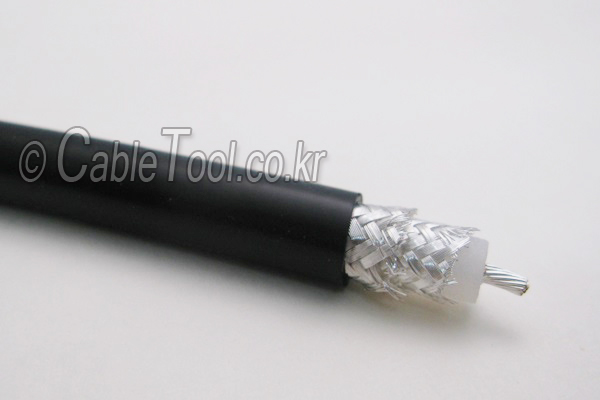

HUBER+SUHNER type: RG_214_HiFlex
Item no: 22512156
Center conductor ( Design: stranded-19  /  Material: CuAg  /  Dim mm: 2.25 )
Dielectric ( Mat: PE / Dim mm: 7.30 )
Screen 1 ( Material: CuAg / Dim mm: 8.00 / Cover %: 93 )
Screen 2 (Dim mm: 8.70 / Cover %: 95 )
Jacket ( Mat: PVC2(LM) / Dim mm: 10.80 / Colour: black )
Weight (kg/100 m): 18.50
Operating(kv): 5.0
Max. operation frequency (GHZ): 6
===================================================================================================
