GX – Cross-linked PE coax cables

Electrical cable data
Impedance (Ω): 50 Ω
Screening: single
Capacitance: 101 pF/m
Screening effectiveness: ≥ 40 dB up to 1 GHz
Velocity of signal propagation: 66 % of the speed of light
Epsilon r: 2.3
Signal delay: 5.0 ns/m
Insulation resistance: >108 MΩm

General cable data
Dielectric material: solid polyethylene cross-linked
Min. bending radius static: 5 x Ø jacket
Min. bending radius dynamic: 15 x Ø jacket
Temperature range: jacket mat. RADOX?: –40 °C to +105 °C

Description

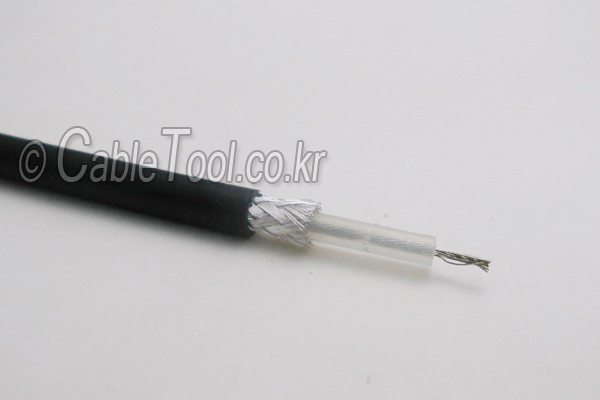

HUBER+SUHNER type: GX_03272
Item no: 22510959
Center conductor ( Design: stranded-19  /  Material: CuSn  /  Dim mm: 0.94 )
Dielectric ( Mat: PEX / Dim mm: 2.95 )
Screen 1 ( Material: CuAg / Dim mm: 3.60 / Cover %: 96 )
Jacket ( Mat: RADOX? / Dim mm: 4.95 / Colour: black )
Weight (kg/100 m): 4.00
Operating(kv): 2.5
Max. operation frequency (GHZ): 3

===================================================================================================
