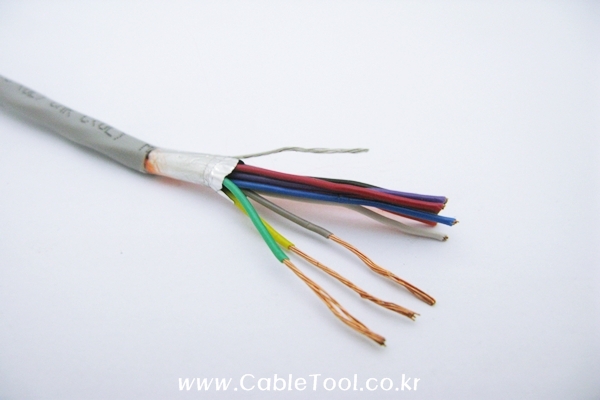

WEST PENN 3272

22/10 Stranded bare copper conductors, shielded with an overall jacket

PART NUMBER:  3272

DESCRIPTION:    22/10 Stranded bare copper conductors, shielded with an overall jacket.

NEC RATING:     CMR, NEC Article 800

APPROVALS:      (UL) C(UL) Listed or c(ETL)us Listed

APPLICATION:     Indoor : Intercom,

Construction Parameters:

Conductor:   22 AWG Bare Copper

Stranding:     7x30

Insulation Material:  PVC

Insulation Thickness:  0.007'' Nom.

Number of Conductors:  10
Shield:  100% Aluminum Polyester Foil

Drain:    Stranded Tinned Copper

Jacket Material:  PVC

Jacket Thickness:  0.017'' Nom.

Overall Cable Diameter: 0.222'' Nom.

Approximate Cable Weight:  46 Lbs/1M' Nom.

Flame Rating:  UL 1666 Riser Flame Test

Electrical & Environmental Properties:

Temperature Rating:   -20°C To +60°C

Operating Voltage:      300 V RMS

Max.Capacitance Between Conductors @ 1 KHz:     55 pf/ft Nom.

Capacitance Between Conductors to Shield @ 1 KHz: 99 pf/ft Nom.

DC Resistance per Conductor @ 20deg C:           17 Ohms/1M' Nom.

Insulation Colors:                                 Black, Red, White, Green, Brown, Blue, Orange,

                                                       Yellow, Purple, Gray

Jacket Color:   Gray

RoHS Compliant: Yes

Mechanical Properties:

Max. Recommended Pull Tension: 108 Lbs.

Min. Bend Radius (Install):  2.4”

==========================================================================================
