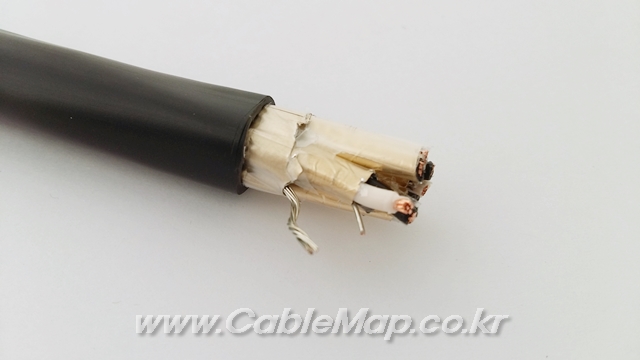

Leoni Kerpen RE-2X(St)YSWAY-fl PiMF 4x2x1.5SQ
¡¡ »óÇ° »ó¼¼ ¼³¸í

Flame Retardant, SunlightResistant

90¡ÆC / 300V

Multi-Pair,XLPE-Insulation, Individual & Collective Screen, Armour, PVC-Sheath

RE-2X(St)YSWAY-fl PiMF 4 x 2 x 1.5SQ


******************************************************************************************

=Application=

transmission of analogue and digital signals in instrument and control systems; allowed use in zone 1 and zone 2 group II classified areas (IEC60079-14); not allowed direct connection to low impedance source, e.g. the public mains electricity supply. Recommended indoor and outdoor installation, on racks, trays, in conduits, in dry and wet locations; direct burial.

******************************************************************************************



=Construction=


Conductor.......... plain annealed copper wire, stranded, size: 0.5 mm2, 0.75 mm2, 1 mm2,1.3 mm2, 1.5 mm2

Insulation......... cross-linked polyethylene XLPE

Colour code........ black / white, continuously numbered on white core (1, 2, 3..) multi-element

Individual screen.. 24 ¥ìm aluminium / PETP tape over tinned copper drain wire, 0.6 mm ¨ª, plastic tape under and above screen

Wrapping........... at least 1 layer of plastic tape Collective screen.. 24 ¥ìm aluminium / PETP tape over tinned copper drain wire, 0.5 mm2

Inner sheath....... polyvinyl chloride PVC, black

Armour............. galvanised round steel wires

Outer sheath....... polyvinyl chloride PVC, black, blue intrinsically safe systems


******************************************

RE-   Instrumentation Cable

2X    XLPE insulation

(St)  collective screen

Y     PVC inner sheath

SWA   steel wire armour

Y     PVC outer sheath

-fl   reduced flamepropagation


PiMF  pair in metal foil

******************************************




===========================================================
