Flame Retardant, SunlightResistant

90°C / 300V

Single & Multi-Pair,XLPE-Insulation, Collective Screen,Armour, PVC-Sheath

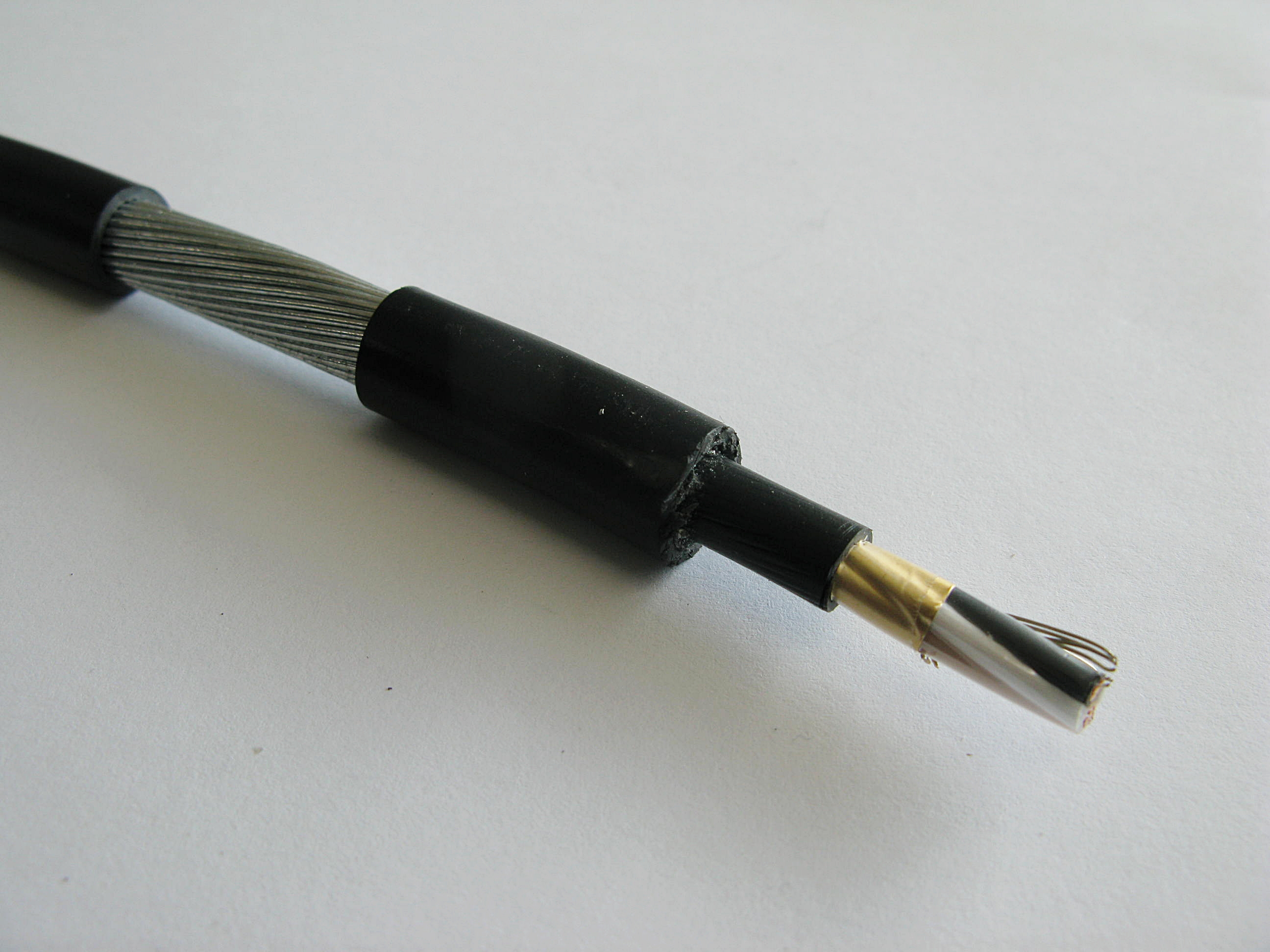

RE-2X(St)YSWAY-fl Pair(Black) 1 x 2 x 1.5㎟/7

No. LKX 7068E121

********************************************************************************************************

=Application=

transmission of analogue anddigital signals in instrument and control systems; allowed use in zone 1and zone 2 group II classified areas (IEC 60079-14); not allowed directconnection to low impedance source, e.g. the public mains electricity supply.

Recommended indoor and outdoorinstallation, on racks, trays, in conduits, in dry and wet locations; direct burial.

********************************************************************************************************

=Construction=

Conductor................ plain annealed copper wire, stranded,

 size: 0.5 mm2, 0.75 mm2, 1 mm2,1.3 mm2, 1.5 mm2, 2.5 mm2)

Insulation............... cross-linked polyethylene XLPE

Colourcode............... black / white,continuously numbered on white core (1, 2, 3..) multielement

Wrapping................. at least 1 layer of plastic tape

Collectivescreen......... 24 μm aluminium / PETP tapeover tinned copper drain wire, 0.5 mm2

Innersheath.............. polyvinyl chloride PVC,black

Armour................... galvanised round steel wires

Outersheath.............. polyvinyl chloride PVC,black, blue intrinsically safe systems

******************************************

RE-   Instrumentation Cable

2X    XLPE insulation

(St)  collective screen

Y     PVC inner sheath

SWA   steel wire armour

Y     PVC outer sheath

-fl  reduced flamepropagation

******************************************

===========================================================
