FieldbusCable UL 13 & IEC 61158-2
FieldbusFoundation H1 100 ¥Ø – Basic
75¡ÆC / 300 V
Rating:Flame Retardant, Sunlight Resistant, Oil Resistant
FB-02YS(St+Ce)Y-fl 1 x 2 x AWG 18/7
Part No. 76770102 (Orange)
******************************************************************************************
=Application=
Fieldbus cable,Type A, bus-systems Fieldbus Foundation acc. to IEC 61158-2. Suitable use in hazardous classified locations class I and class II
division 2 acc. toNEC 501.10(B) and NEC 502.10(B) or zone 1 and zone 2, group II, acc. to IEC60079-14, resp.
Recommended indoor and outdoor installation, on racks, trays, in conduits, in dry and wetlocations; not direct burial.
******************************************************************************************

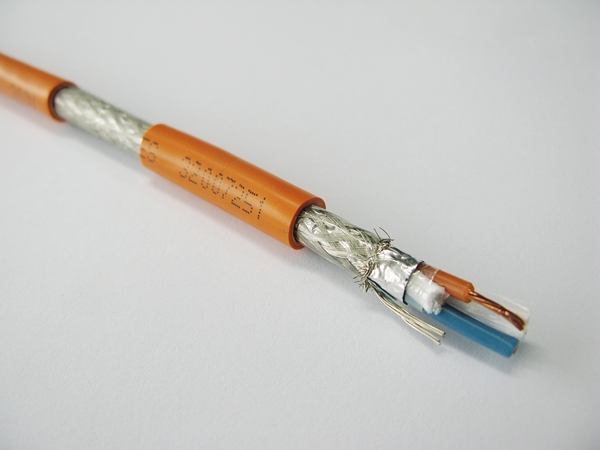

=Construction=
Conductor.................... plain annealed copper wire, stranded, size:AWG 18
Insulation................... foamed polyethylene with skin layer
Colourcode.................. (+)-core: orange,(-)-core: blue
Collectivescreen............ plastic coatedaluminium tape, metallic surface outside,
in contact with tinnedcopper drain wire and tinned copper wire braid
Outersheath................. polyvinylchloride PVC, orange
(blue intrinsically safe systems)
Oil resistance............... ICEA S-73-532
Sunlight resistance.......... UL 1581 section 1200
***********************************************************
FB- FieldbusCable
02YS foamedPE insulation with skin layer
(St+Ce) combined collective screen with drain wire
Y PVC outer sheath
-fl reducedflame propagation
***********************************************************
===========================================================
