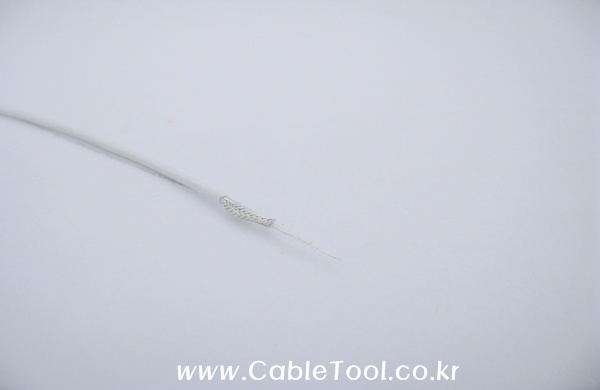

Thermax
M17/169-RG178BU
|
|
|
Conductor Diameter -
inches (mm)
|
.012 (.057)
|
|
Conductor Type
|
7/38 SPCW
(Silver-plated copperweld (copper-covered steel)
|
|
Impedance
|
50¥Ø
|
|
Max. Working Voltage
|
750
|
|
Jacket Diameter -
inches (mm)
|
.071 (1.80)
|
|
Capacitance (pF/ft)
|
32.0 (105)
|
|
Weight - pounds/1000
feet (Kg/1000 M)
|
5.41 (8.05)
|
|
Attenuation @ 100 MHz
(dB/100 ft.)
|
-
|
|
Attenuation @ 1 GHz
(dB/100 ft.)
|
52.0
|
|
Attenuation @ 400 MHz
(dB/100 ft.)
|
33.0
|
|
Insulation Diameter -
inches (mm)
|
.033 (.838)
|
|
Jacket Type
|
Extruded FEP
(Fluorinated Ethylene Propylene)
|
|
Insulation Type
|
Extruded PTFE
(polytetrafluoroethylene)
|
|
Braid Type
|
Single 38 SPC
(Silver-plated copper)
|
|
Braid Diameter - inches
(mm)
|
.051 (1.30)
|
|
Max. Conductor
Resistance - Ohm/100 ft. (ohm/100 meters)
|
24.5 (80.2)
|
|
Min. Dielectric
Strength - KV RMS
|
2.00
|
|
Min. Corona Extinction
- KV RMS
|
1.00
|
|
Max. Power @ 100 MHz
(Watts)
|
255
|
|
Max. Power @ 400 MHz
(Watts)
|
113
|
|
Max. Power @ 1 GHz
(Watts)
|
66
|
|
Thermax Type
|
RGU-178
|
|
Cable Type
|
Coaxial
|
|
|
----------------------------------------------------------------------------------------------------------------------------------------------
