Thermax
M17/60-RG-142
LTE high-permance coaxial cables
LTE is a patented low-density, air-expanded PTFE dielectric which provides
reduced weight and increased velocity of propagation (up to 85%). LTE
dielectric also exhibits low loss and stable permance throughout its
temperature range.
These cables are ideal replacements MIL-C-17 cables in demanding applications
such as aerospace and high-reliability commercial systems.

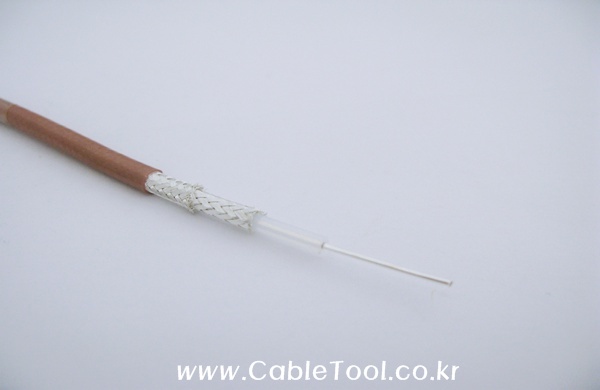

Construction
Details
Center Conductor: See table below.
Dielectric: LTE (extruded low-density PTFE) or low density / composite.
Inner Shield:
875-892: None.
900-142: Flat silver-plated copper braid, 95% coverage.
900-316: Flat silver-plated copper braid, 95% coverage.
900-393: Flat silver-plated copper braid, 92% coverage.
Outer Shield:
Silver-plated copper braid,
95%
nominal coverage. Can be
provided with
optional shield types such as flat braid, tape
composites, or combinations.
Jacket: Extruded FEP.
Permance:
Temperature rating: 200¡Æ C.
Impedance: 875-892: 75¥Ø nominal.
All others: 50¥Ø nominal.
Dimensions and
Weights
|
Thermax P/N
|
Inner Conductor
|
Dielectric Diameter
|
Inner Shield Diameter
|
Outer Shield Diameter
|
Jacket
Diameter
|
Weight
|
Min. Bend
Radius
|
|
Diameter
|
Stranding
|
|
875-892
|
.015 (2.67)
|
7/36 SPCA
|
.063 (1.60)
|
—
|
.080 (2.03
|
.100 (2.54)
|
8.5 (12.6)
|
.50 (12.7)
|
|
900-142
|
.051 (1.30)
|
Solid SPC
|
.145 (3.68)
|
.153 (3.85
|
.171 (4.34)
|
.190 (4.83)
|
39.0 (57.8)
|
1.0 (25.4)
|
|
900-316
|
.020 (.51)
|
Solid SPCW
|
.060 (1.53)
|
.068 (1.73)
|
.085 (2.16)
|
.105 (2.68)
|
10.4 (15.5)
|
.50 (12.7)
|
|
900-393
|
.105 (2.67)
|
7/.038 SPC
|
.285 (7.24)
|
.291 (7.39)
|
.318 (8.08)
|
.390 (9.91)
|
133.0 (197.1)
|
2.0 (50.8)
|
--------------------------------------------------------------------------------------
