UNITRONIC LAN 200 MHz - CAT.5e
 Application
Mainly used
where the terminal density is very high, e.g. wiring office, administration
and development buildings in the tertiary area (floor wiring).
Cable length
in tertiary area (horizontal area, floor) should not exceed a length of 100 m
in accordance with the ISO/IEC 11801 and EN 50173 standards (90 m in cable duct
+ 10 m in working area)

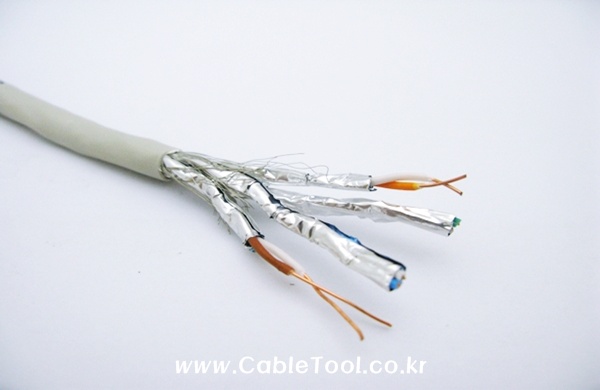

Cable Design U/UTP: no
overall or pair shielding F/UTP: foil
screening as overall screening SF/UTP:
copper braid and foil screening as overall screening Solid
conductor outer
sheath either as PVC or LSZH
Approvals (Norm
references) Class D in
ISO/IEC 11801 standard corresponds to CAT.5 LAN CAT.5e
cables from Lapp Kabel “Structured Cabling Systems” meet the requirements in accordance with EIA/TIA-568 and TSB36, as
well as ISO/IEC 11801 or EN 50173 (Class D).
Product features Transfer of
digital and analogue data signals The characteristic impedance of this cable is
100 Ohm ±15 % IEEE 802.3:
10/100/1000Base-T IEEE 802.5: ISDN; FDDI; ATM
Remark Unless
specified otherwise, the shown product values are nominal values. Detailed
values (e.g. tolerances) are available upon request. Copper price
basis: EUR 150/100kg. Refer to Appendix T17 the definition and calculation
of copper-related surcharges. Please find
our standard lengths at: www.lappkabel.de/en/cable-standardlengths Packaging
size: Coil 100 m; Drum (500; 1000) m Detailed data
sheets are available upon request. Please specify the type/dimensions of the
required cable. Photographs
are not to scale and do not represent detailed images of the respective
products. Technical Data
Minimum bending radius: during installation: 8 x outer
diameter
Fixed installation: 4 x outer diameter
Temperature range: Operating temperature:
-20°C to +60°C
During installation: 0 °C to +50 °C
Characteristic impedance: 100 Ohm +-
15%
===================================================================================================
