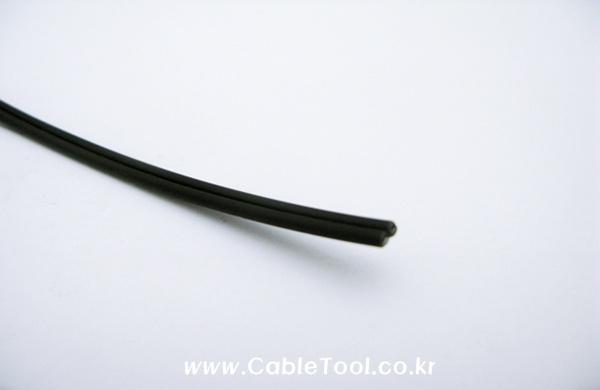

Polymer Optical Fibre in duplex version without outer sheath

Lappkabel 28000002(old article no. 2185010)

Application

Indoors, fixed installation in control cabinets, cable ducts and tubes

Direct connector assembly

Cable Design

Cable core : Polymethylmethacrylate (PMMA) with fluoropolymer cladding, twin construction

Cable inner sheath : Not applicable

Cable outer sheath : Polyethylene (PE), halogen-free

Colour of inner sheath : Not applicable

Colour of outer sheath : Black

Colour-coding : One of the two fibres has a white dot identification

Strain relief : Not applicable

Type of armouring : Not applicable

Optical and Physical Properties of Fibre

Attenuation :  @650 nm dB/km ≤ 160

@660 nm dB/km ≤ 230

Bandwidth :   @650 nm MHz x 100m 10

Numerical aperture :  0.5 ± 0.05

Core diameter : μm 980 ± 2

Cladding diameter : μm 1000 ± 2

Thermal Properties

Operating temperature : -55°C to +85°C

Installation temperature : -10°C to +50°C

Storage temperature : -55°C to +85°C

Mechanical Properties

Max. number of fibres : 2

Cable outer diameter : 2.2 x 4.4 mm

Cable weight : 7.6 kg/km

Min. bending radius fixed installation : > 25 mm

Max. tensile strength fixed installation : 10 N

short term : 30 N

Chemical Properties

PE sheath : Non-aging, halogen-free, good stability to acids and alkalis

Approvals

RoHS

===================================================================================================
