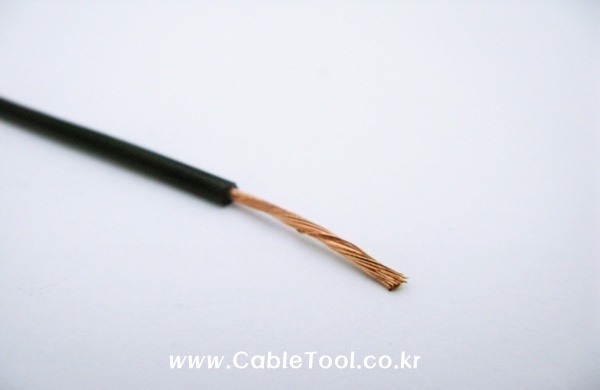

Eland A2TBK 0015
Tri-rated Cable H05V2-K /
H07V2-K
Applications
High temperature, flame retardant cable designed use in the switch
control, relay and instrumentation panels of power switchgear and purposes
such as internal connectors in rectifier equipment, motor starters and
controllers. Tri-rated Cable is sometimes referred to as BS6231 Cable, H07V2-K
or Panel Wire.
Standards
BS6231 Type CK, UL Subj.758, CSA C22.2 No. 210, HD 21.7 S2*
Technical Data
UL
Style Number : 1015
Conductor
: Class 5 flexible plain copper conductor to BS EN
60228:2005 (previously BS6360)
Insulation
: PVC (Polyvinyl Chloride)
Insulation
Colour :
Black, Red, Blue, Light Blue, Dark Blue, Yellow, Green/Yellow, Grey, Brown,
Orange, White, Violet, Green, Pink
Voltage
Rating (Uo/U) : BS6231: 600/1000V / UL, CSA: 600V/1000V / HD21.7 S2:
300V/500V, 450V/750V
Temperature
Rating : BS6231: 90°C (105°C
15,000 hours), UL, CSA: 105°C
Minimum
Bending Radius : 6 x overall diameter
Note
:
HD 21.7 S2 covers conductor sizes up to 35mm”, cables above
this size are generally to the specification. Where it is intended to connect cables
contained within this datasheet to equipment or accessories confirmation should
be obtained to ensure that they are capable of withstanding the operating
temperature of the cable. In the event of the equipment or accessories having a
lower temperature range the cables should be de-rated accordingly as per BS
7671 Regulation 512.1.5.
Dimensions
Eland Part Number : A2TBK0015
No. of Cores x Nominal Cross Sectional Area # x mm² : 1 x 1.50
AWG : 16
Nominal Thickness of Insulation mm : 0.80
Nominal Overall Diameter mm : 3.20
Nominal Weight kg/Km : 23
UL Style Number : 1015
==========================================================================================
