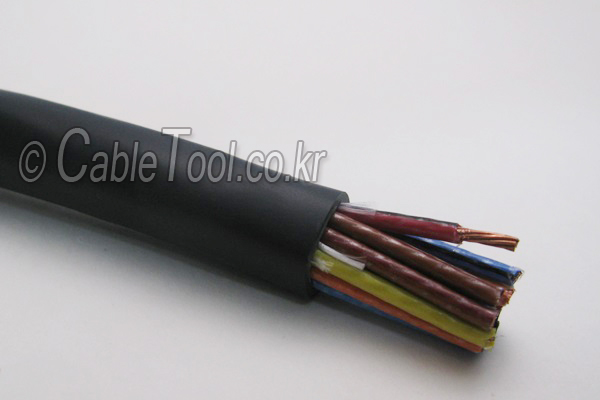

Anixter 2A-1416

Product Description

PVC-nylon insulation

PVC jacket

90°C, 600 V

Applications

Designed power and control, telemetering, relay control, traffic control, switching, lighting and signal transmission. May be used in Class I, Div. 2 and Class II, Div. 2 Hazardous Locations per NEC Art. 501 and 502. These cables also conm to Art. 392 "Cable Trays" and Art 336 "Power and Control Tray Cable."

Specifications

● CONDUCTORS: Class B stranded bare copper per UL 83 and 62

● INSULATION: Polyvinyl Chloride (PVC) per UL 62 Type TFFN (18-16 AWG) or UL 83 Type THWN or THHN wire, nominal thickness is 15 mils sizes 18-12 AWG and 20 mils 10 AWG

● INSULATION JACKET: Each insulated conductor is jacketed with nylon meeting UL 62 Type TFFN or UL 83 Type THWN or THHN wire, minimum thickness is 4 mils

●COLOR CODE: ICEA Method 1, Table E-2 (merly K-2)

●ASSEMBLY: Conductors are cabled with fillers where necessary to make round, two conductor cables are flat

● OVERALL JACKET: Sunlight-resistant Polyvinyl Chloride (PVC) per UL 1277

● STANDARDS: Meets UL 1277 requirements Type TC cables having THWN or THHN (TFFN) conductors, cables are listed direct burial and meet the IEEE1202, IEEE 383 and UL 1685 Btu/hr flame tests. Three conductor and larger constructions meet UL 1277 requirements Exposed Runs and are rated Type TCER (Tray Cable, Exposed Runs)

● AMPACITY: Based on not more than three conductors in raceway or cable or earth with an ambient temperature of 30ºC per NEC Table 310.16, the values have been derated wher applicable

●TEMPERATURE: 90ºC

● VOLTAGE: 600 V

===========================================================================
